Test Methods and Specifications

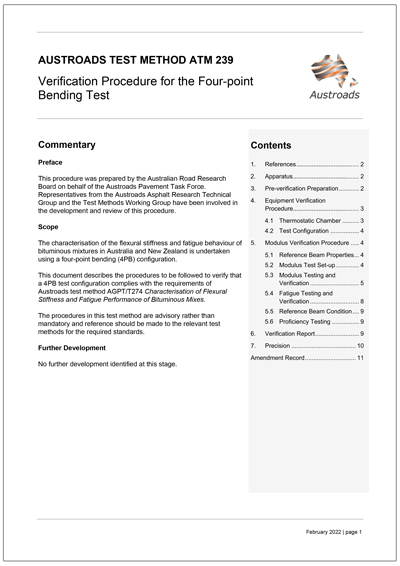

Verification Procedure for the Four-point Bending Test
- Publication no: ATM-239-22
- Published: 15 February 2022
- Edition: 1.0
- PDF (free) Download
The characterisation of the flexural stiffness and fatigue behaviour of bituminous mixtures in Australia and New Zealand is undertaken using a four-point bending (4PB) configuration.
This document describes the procedures to be followed to verify that a 4PB test configuration complies with the requirements of Austroads test method ATM-274 Characterisation of Flexural Stiffness and Fatigue Performance of Bituminous Mixes.
The procedures in this test method are advisory rather than mandatory and reference should be made to the relevant test methods for the required standards.
This test method can also be downloaded as a Word document.
- 1. References
- 2. Apparatus
- 3. Pre-verification Preparation
- 4. Equipment Verification Procedure
- 4.1 Thermostatic Chamber
- 4.2 Test Configuration
- 5. Modulus Verification Procedure
- 5.1 Reference Beam Properties
- 5.2 Modulus Test Set-up
- 5.3 Modulus Testing and Verification
- 5.4 Fatigue Testing and Verification
- 5.5 Reference Beam Condition
- 5.6 Proficiency Testing
- 6. Verification Report
- 7. Precision
