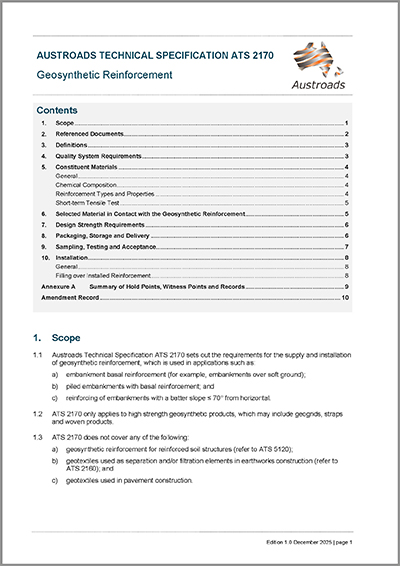

Geosynthetic Reinforcement
- Publication no: ATS-2170-25
- Published: 9 December 2025
- Edition: 1.0
- PDF (free) Download
Austroads Technical Specification ATS 2170 sets out the requirements for the supply and installation of geosynthetic reinforcement, which is used in applications such as:
- a) embankment basal reinforcement (for example, embankments over soft ground);
- b) piled embankments with basal reinforcement; and
- c) reinforcing of embankments with a batter slope ≤ 70° from horizontal.
ATS 2170 only applies to high strength geosynthetic products, which may include geogrids, straps and woven products.
ATS 2170 does not cover any of the following:
- a) geosynthetic reinforcement for reinforced soil structures (refer to ATS 5120);
- b) geotextiles used as separation and/or filtration elements in earthworks construction (refer to ATS 2160); and
- c) geotextiles used in pavement construction.
This technical specification can also be downloaded as a Word document.
- 1. Scope
- 2. Referenced Documents
- 3. Definitions
- Symbols
- 4. Quality System Requirements
- 5. Constituent Materials
- General
- Chemical Composition
- Reinforcement Types and Properties
- Short-term Tensile Test
- 6. Selected Material in Contact with the Geosynthetic Reinforcement
- 7. Design Strength Requirements
- 8. Packaging, Storage and Delivery
- 9. Sampling, Testing and Acceptance
- 10. Installation
- General
- Filling over Installed Reinforcement
- Annexure A Summary of Hold Points, Witness Points and Records
